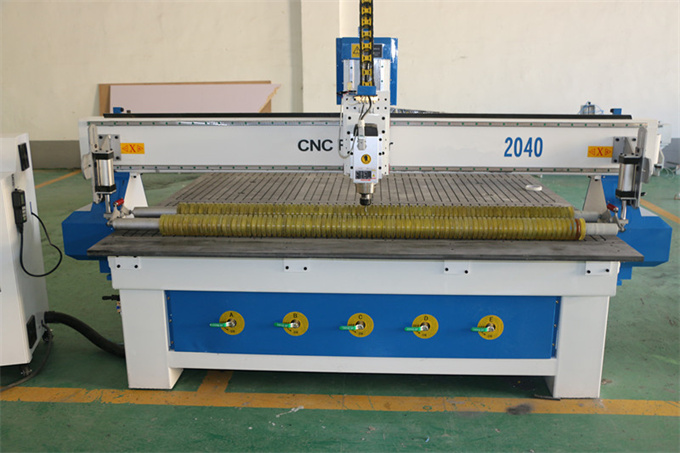

Effective working area: 2000mm*4000mm*200mm
4.5kw air cooling spindle
Fuling inverter
DSP controller
stepper motor or servo motor
Vacuum & T-slot working table

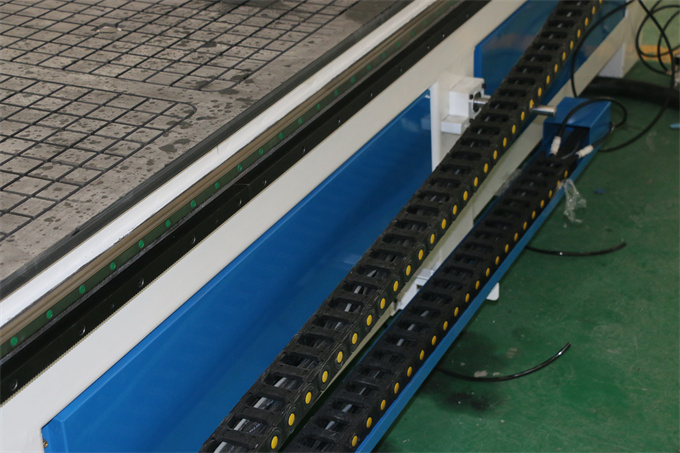

Taiwan TBI Ball Screw,Helical Rack and Pinion
Pusher roller
| Technical Data of our cnc milling machine 2000*4000mm | ||
NO | Description | Parameter |
1 | Positioning Accuracy | ±0.03/300mm |
2 | Max. Rapid Travel Rate | 80000mm/min |
3 | Max. Working Speed | 45000mm/min |
4 | Spindle Speed | 0-24000RPM |
5 | Command Language | G Code |
6 | Flash Memory | 512M |
7 | Collet | ER32 |
8 | X,Y Resolution | <0.03mm |
9 | Running Environment Temperature | 0 - 45 Centigrade |
10 | Relative Humidity | 30% - 75% |
11 | Packing Size | 3520*2280*2100mm |
12 | N.W. | 1500KG |
13 | G.W. | 1700KG |
| Spindle | Air Cooling Spindle Top brand. Spindle speed: 0-18000RPM. |

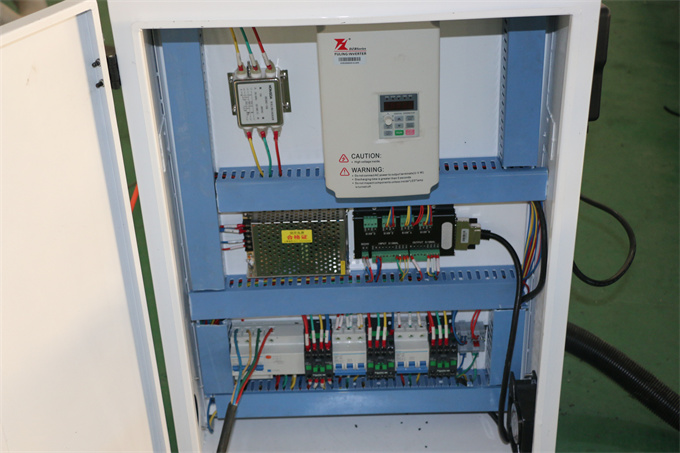

Inverter | Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
Motor | china servo motor high working efficiency and stable running promised |

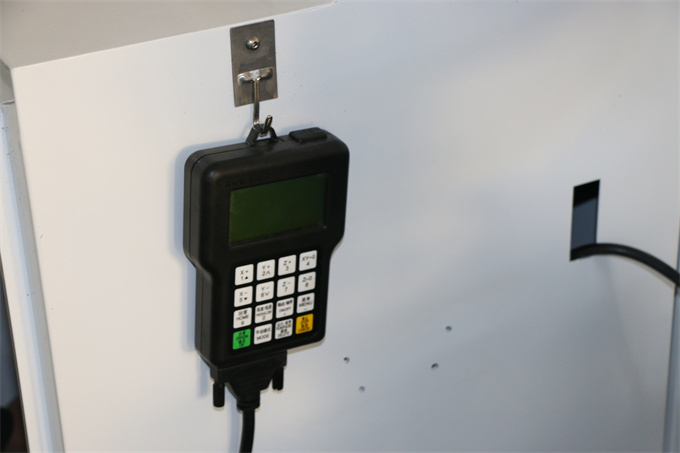

Control system | dsp controller |
Working table | T-slot and Vacuum Table |
Pusher roller | can hold the materials well . materials no move , cutting effect is good |
